Create New Pipeline

Define an Empty Pipeline #

Now we are ready to define the basics of the pipeline.

Return to the file lib/pipeline-stack.ts and edit as follows:

import * as cdk from 'aws-cdk-lib';
import * as codecommit from 'aws-cdk-lib/aws-codecommit';
import { Construct } from 'constructs';
import {CodeBuildStep, CodePipeline, CodePipelineSource} from "aws-cdk-lib/pipelines";

export class WorkshopPipelineStack extends cdk.Stack {
    constructor(scope: Construct, id: string, props?: cdk.StackProps) {
        super(scope, id, props);

        // This creates a new CodeCommit repository called 'WorkshopRepo'
        const repo = new codecommit.Repository(this, 'WorkshopRepo', {
            repositoryName: "WorkshopRepo"
        });

        // The basic pipeline declaration. This sets the initial structure
        // of our pipeline
       const pipeline = new CodePipeline(this, 'Pipeline', {
            pipelineName: 'WorkshopPipeline',
            synth: new CodeBuildStep('SynthStep', {
                    input: CodePipelineSource.codeCommit(repo, 'main'),
                    installCommands: [
                        'npm install -g aws-cdk'
                    ],
                    commands: [
                        'npm ci',
                        'npm run build',
                        'npx cdk synth'
                    ]
                }
            )
        });
    }
}

Component Breakdown #

The above code does several things:

new CodePipeline(...): This initializes the pipeline with the required values. This will serve as the base component moving forward. Every pipeline requires at bare minimum:
- synth(...): The synthAction of the pipeline describes the commands necessary to install dependencies, build, and synth the CDK application from source. This should always end in a synth command, for NPM-based projects this is always npx cdk synth.
- The input of the synth step specifies the repository where the CDK source code is stored.

Deploy Pipeline and See Result #

All that’s left to get our pipeline up and running is to commit our changes and run one last cdk deploy.

git commit -am "MESSAGE" && git push
cdk deploy

CDK Pipelines auto-update for each commit in a source repo, so this is the last time we will need to execute this command!

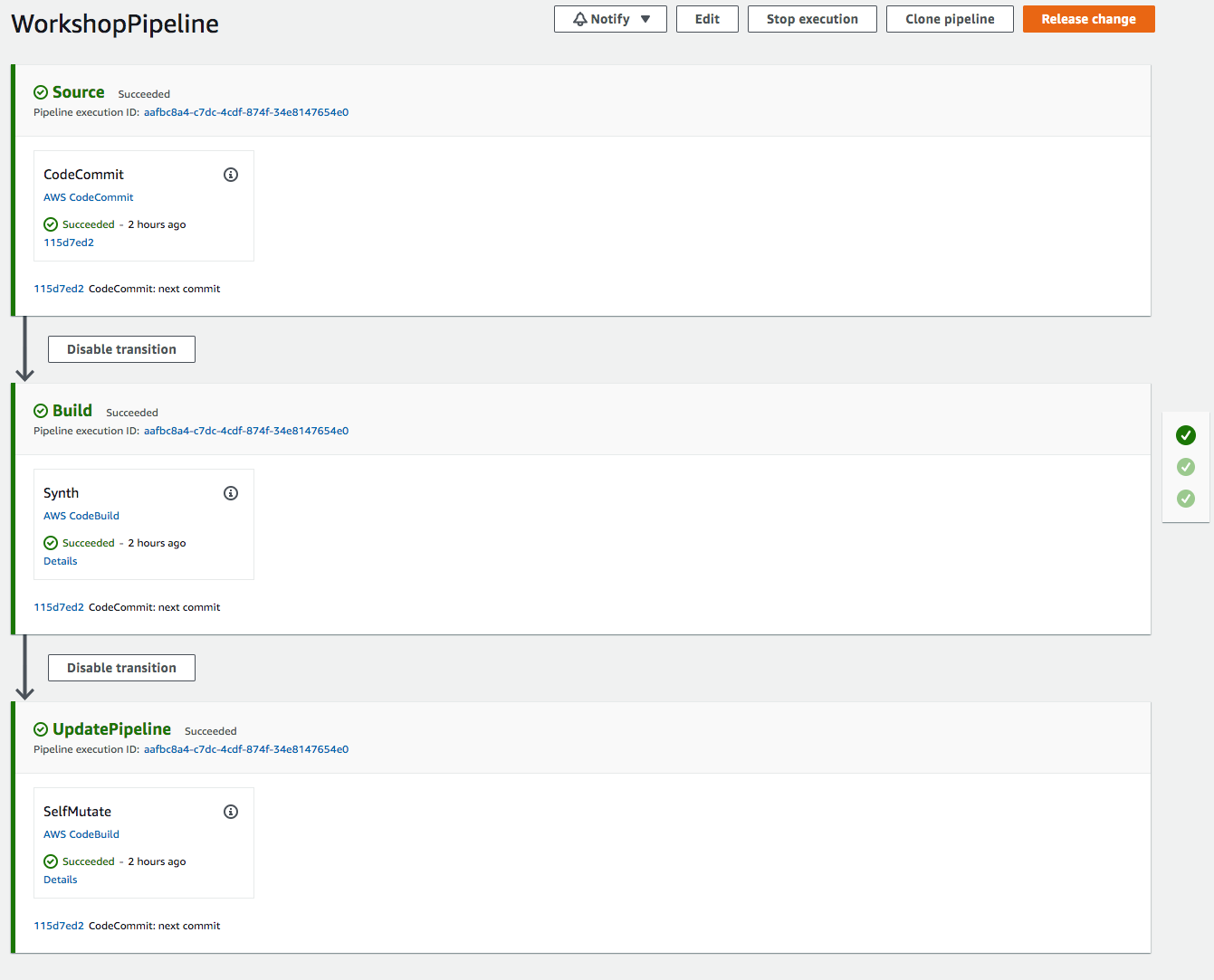

Once deployment is finished, you can go to the CodePipeline console and you will see a new pipeline! If you navigate to it, it should look like this:
