Add Application to Pipeline

Create Stage #

At this point, you have a fully operating CDK pipeline that will automatically update itself on every commit, BUT at the moment, that is all it does. We need to add a stage to the pipeline that will deploy our application.

Create a new file in infra called pipeline-stage.go with the code below:

package infra

import (
	"github.com/aws/aws-cdk-go/awscdk/v2"
	"github.com/aws/constructs-go/constructs/v10"
)

type WorkshopPipelineStageProps struct {
	awscdk.StageProps
}

func NewWorkshopPipelineStage(scope constructs.Construct, id string, props *WorkshopPipelineStageProps) awscdk.Stage {
	var sprops awscdk.StageProps
	if props != nil {
		sprops = props.StageProps
	}
	stage := awscdk.NewStage(scope, &id, &sprops)

	NewCdkWorkshopStack(stage, "WebService", nil)

	return stage
}

All this does is declare a new Stage (component of a pipeline), and in that stage instantiate our application stack.

Add stage to pipeline #

Now we must add the stage to the pipeline by adding the following code to infra/pipeline-stack.go:

package infra

import (
	"github.com/aws/aws-cdk-go/awscdk/v2"
	"github.com/aws/aws-cdk-go/awscdk/v2/awscodecommit"
	"github.com/aws/aws-cdk-go/awscdk/v2/pipelines"
	"github.com/aws/constructs-go/constructs/v10"
	"github.com/aws/jsii-runtime-go"
)

type PipelineStackProps struct {
	awscdk.StackProps
}

func NewPipelineStack(scope constructs.Construct, id string, props *PipelineStackProps) awscdk.Stack {
	var sprops awscdk.StackProps
	if props != nil {
		sprops = props.StackProps
	}
	stack := awscdk.NewStack(scope, &id, &sprops)

	repo := awscodecommit.NewRepository(stack, jsii.String("WorkshopRepo"), &awscodecommit.RepositoryProps{
		RepositoryName: jsii.String("WorkshopRepo"),
	})

	pipeline := pipelines.NewCodePipeline(stack, jsii.String("Pipeline"), &pipelines.CodePipelineProps{
		PipelineName: jsii.String("WorkshopPipeline"),
		Synth: pipelines.NewCodeBuildStep(jsii.String("SynthStep"), &pipelines.CodeBuildStepProps{
			Input: pipelines.CodePipelineSource_CodeCommit(repo, jsii.String("main"), nil),
			Commands: jsii.Strings(
				"npm install -g aws-cdk",
                "goenv install 1.18.3",
				"goenv local 1.18.3",
				"npx cdk synth",
			),
		}),
	})

	deploy := NewWorkshopPipelineStage(stack, "Deploy", nil)
	pipeline.AddStage(deploy, nil)

	return stack
}

This imports and creates an instance of the WorkshopPipelineStage. Later, you might instantiate this stage multiple times (e.g. you want a Production deployment and a separate development/test deployment).

Then we add that stage to our pipeline (pipeline.AddStage(deploy);). A Stage in a CDK Pipeline represents a set of one or more CDK Stacks that should be deployed together, to a particular environment.

Commit/Deploy #

Now that we have added the code to deploy our application, all that’s left is to commit and push those changes to the repo.

git commit -am "Add deploy stage to pipeline" && git push

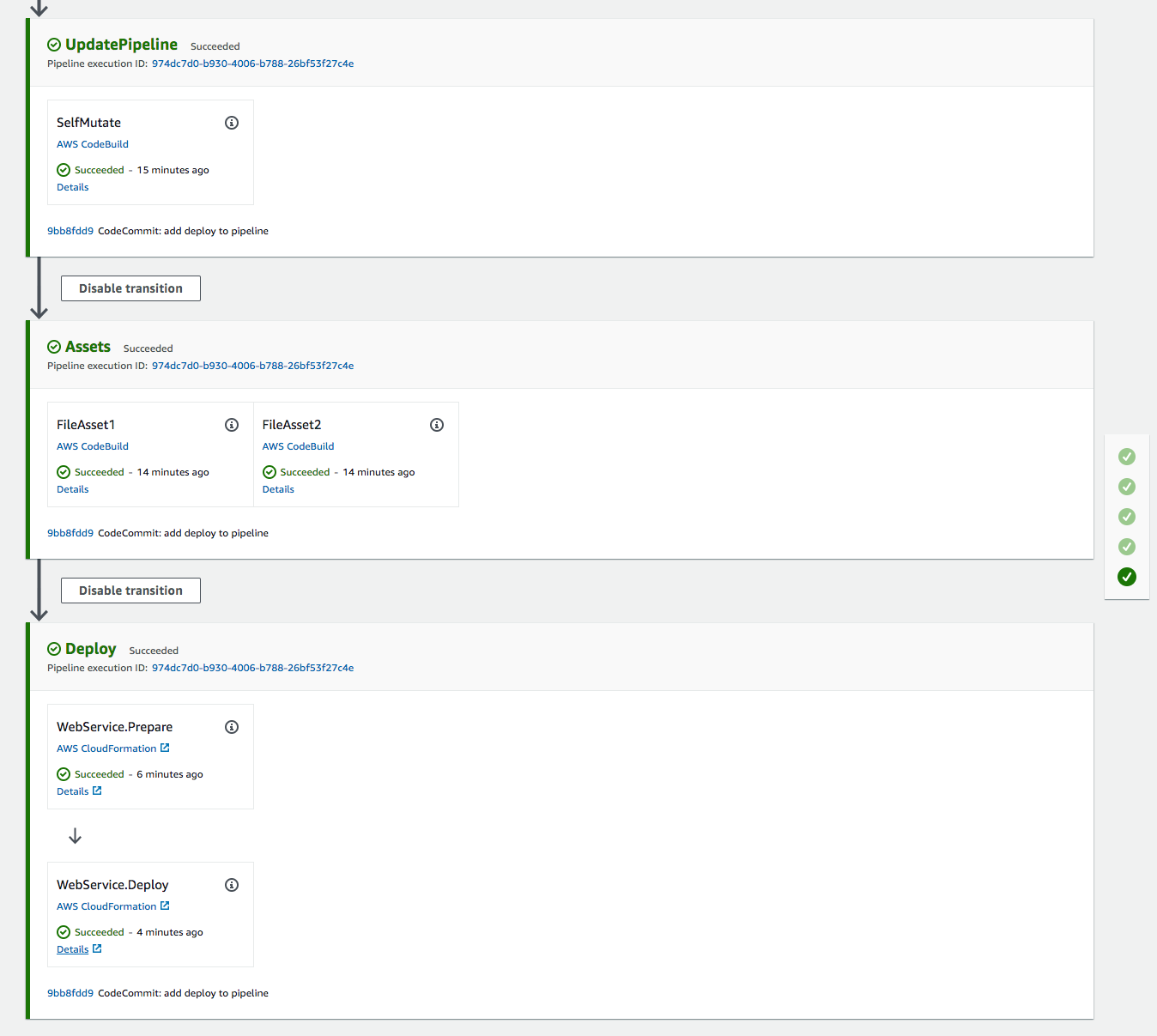

Once that is done, we can go back to the CodePipeline console and take a look as the pipeline runs (this may take a while).

Success!
