Open your IDE #

Now’s a good time to open the project in your favorite IDE and explore.

If you use VSCode, you can just type code . within the project directory.

You may see a notification saying Required assets to build and debug are missing from 'YOURPROJECT'. Add them?

This can be ignored for our purposes.

Explore your project directory #

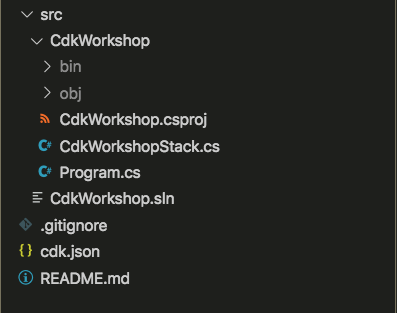

You’ll see something like this:

• src/CdkWorkshop/Program.cs is the entrypoint for the CDK application it will load the stack defined in src/CdkWorkshop/CdkWorkshopStack.cs
• src/CdkWorkshop/CdkWorkshopStack.cs is where your CDK application’s main stack is defined. This is the file we’ll be spending most of our time in.
• cdk.json tells the toolkit how to run your app. In our case it will be "dotnet run -p src/CdkWorkshop/CdkWorkshop.csproj"
• src/CdkWorkshop/CdkWorkshop.csproj is the C# project file. It is an xml file and contains information on references. This will be useful to you down the line, but is not relevant for the purposes of this workshop.
• src/CdkWorkshop/GlobalSuppressions.cs disables the Roslyn analyzer for RECS0026:Possible unassigned object created by 'new' as this generates many false positives with CDK.
• src/CdkWorkshop.sln is the C# solution file that provides build information. You should not need to interface with this file.
• .gitignore tells git which files to include/exclude from source control and when publishing this module to the package manager.
• The src/CdkWorkshop/bin and src/CdkWorkshop/obj folders are the build folders for the project and can be ignored.

Your app’s entry point #

Let’s have a quick look at src/CdkWorkshop/Program.cs:

using Amazon.CDK;

namespace CdkWorkshop
{
    class Program
    {
        static void Main(string[] args)
        {
            var app = new App();
            new CdkWorkshopStack(app, "CdkWorkshopStack");

            app.Synth();
        }
    }
}

This code loads and instantiates the CdkWorkshopStack class from the src/CdkWorkshop/CdkWorkshopStack.cs file. We won’t need to look at this file anymore.

The main stack #

Open up src/CdkWorkshop/CdkWorkshopStack.cs. This is where the meat of our application is:

using Amazon.CDK;
using Amazon.CDK.AWS.SNS;
using Amazon.CDK.AWS.SNS.Subscriptions;
using Amazon.CDK.AWS.SQS;
using Constructs;

namespace CdkWorkshop
{
    public class CdkWorkshopStack : Stack
    {
        public CdkWorkshopStack(Construct scope, string id, IStackProps props = null) : base(scope, id, props)
        {
             // The CDK includes built-in constructs for most resource types, such as Queues and Topics.
            var queue = new Queue(this, "CdkWorkshopQueue", new QueueProps
            {
                VisibilityTimeout = Duration.Seconds(300)
            });

            var topic = new Topic(this, "CdkWorkshopTopic");

            topic.AddSubscription(new SqsSubscription(queue));
        }
    }
}

As you can see, our app was created with a sample CDK stack (CdkWorkshopStack).

The stack includes:

• SQS Queue (new Queue)
• SNS Topic (new Topic)
• Subscribing the queue to receive any messages published to the topic (topic.AddSubscription)
